Visaton DT 94 8Ohm

€24.48 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • vi-9004
Visaton DT 94 8Ohm   20 mm (0.8") polycarbonate HiFi driver with round shaped front... more
Product information "Visaton DT 94 8Ohm"

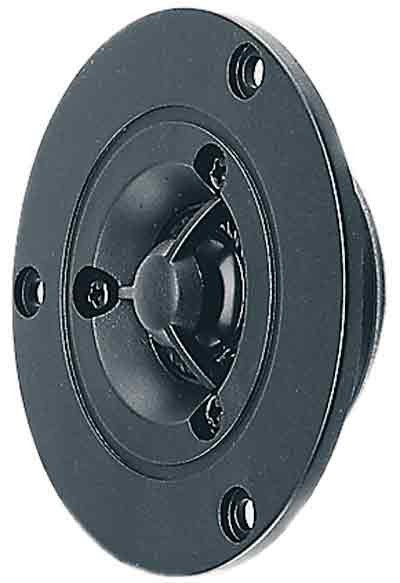

Visaton DT 94 8Ohm



20 mm (0.8") polycarbonate HiFi driver with round shaped front plate for the highrange above 3000 Hz. Balanced frequency response and good omnidirectional sound distribution. High power handling due to ferrofluid-cooled voice-coil.



Technical Data:
Nominal power handling with high pass 70 W (12 dB/Okt.; 4000 Hz)
50 W (12 dB/Okt.; 2000 Hz)
Peak power handling with high pass 100 W (12 dB/Okt.; 4000 Hz)
80 W (12 dB/Okt.; 2000 Hz)
Nominal impedance Z 8 Ohm

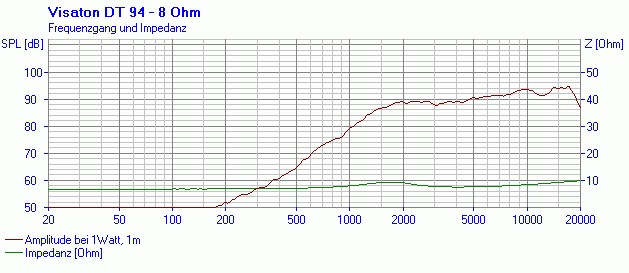

Frequency response 1200–22000 Hz
Mean sound pressure level 90 dB (1 W/1 m)
Excursion limit 84°/8000 Hz
Resonance frequency fs 1900 Hz
Magnetic induction 1,2 T
Magnetic flux 185 µWb
Height of front pole-plate 2,5 mm
Voice coil diameter 20 mm
Height of winding 2 mm

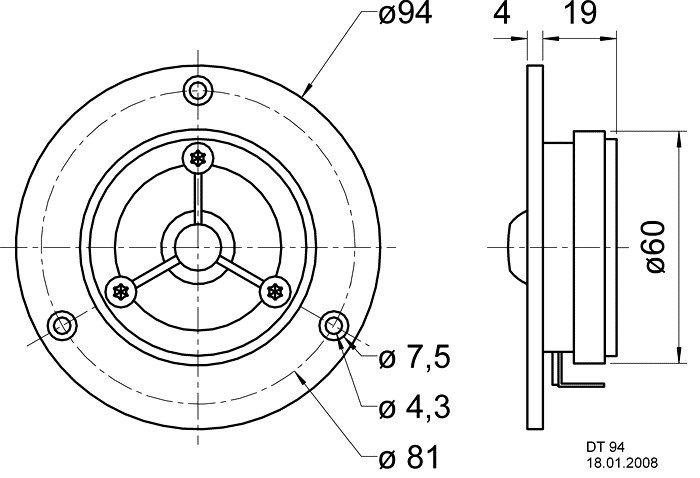

Cutout diameter 64 mm
Net weight 0,24 kg
D.C. resistance Rdc 6,7 Ohm
Mechanical Q factor Qms 3,07
Electrical Q factor Qes 0,66
Total Q factor Qts 0,54
Effective piston area Sd 3 cm²
Dynamically moved mass Mms 0,2 g
Inductance of the voice coil L 0,12 mH
