Tangband W69-1042 The oval shaped frame of the W69-1042 gives you the surface area of a... more
Product information "Tangband W69-1042"

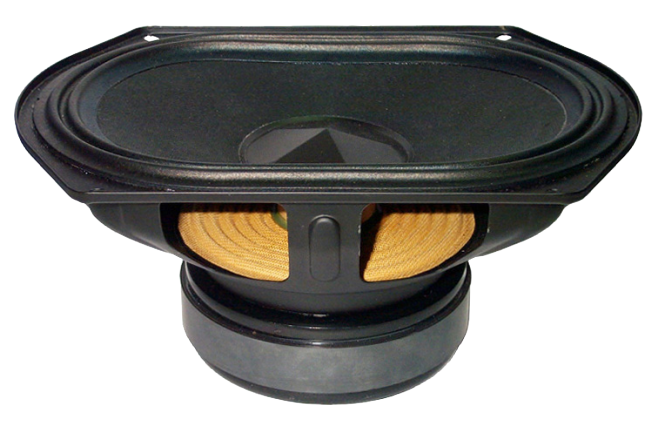

Tangband W69-1042
The oval shaped frame of the W69-1042 gives you the surface area of a typical 8` driver in the footprint of a 6-1/2`. Perfect for constructing a narrow-baffle subwoofer, or for automotive installs in factory 6` x 9` locations. High power handling and long excursion for excellent low-bass performance.
| DIAPHRAGM MTL | Non-Pressed Paper |
| SURROUND MTL | Rubber W Shape |
| NOMINAL IMPEDANCE | 8 Ohm |
| DCR IMPEDANCE | 6.5 Ohm |
| SENSITIVITY 1W/1m | 87 dB |

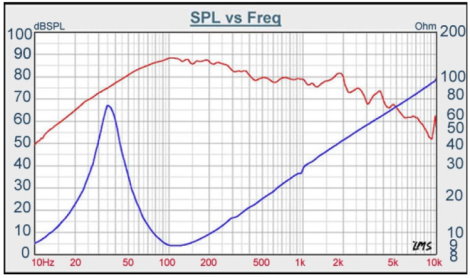

| FREQUENCY RESPONSE | 35-350 Hz |
| FREE AIR RESONANCE | 35 Hz |
| VOICE COIL DIAMETER | 38.5 mm |
| AIR GAP HEIGHT | 8 mm |
| RATED POWER INPUT | 90 W |
| MAXIMUM POWER INPUT | 170 W |
| FORCE FACTOR, BL | 12.83 TM |
| MAGNET WEIGHT (29.2oz) | 826 g |
| MOVING MASS | 46 g |
| FERROFLUID ENHANCED | No |
| SUSPENSION COMPLIANCE | 523.7693 MN-1 |
| EFFECTIVE PISTON AREA | 0.0226 m2 |
| Levc | 3.2739 mH |
| Zo | 112.823 ohm |
| X-max | 7 mm |
| Vas | 37.99 Litr. |
| Qts | 0.35 |
| Qms | 6.05 |
| Qes | 0.37 |
