Gradient AXP-08

Gradient AXP-08
€69.77 *

Prices incl. VAT plus shipping costs

Delivery time 7-14 Workdays

  • 1381683
Gradient Axis AXP-08 High Power Midrange Loudspeaker 8" loudspeaker driver... more
Product information "Gradient AXP-08"

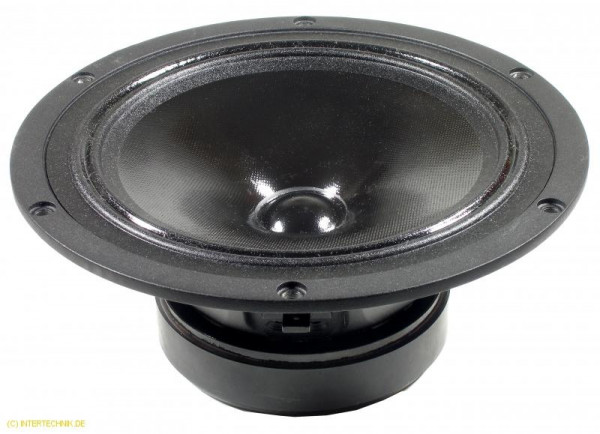

Gradient Axis AXP-08 High Power Midrange Loudspeaker

  • 8" loudspeaker driver
  • high-efficiency performance high sensitivity
  • lightweight, reinforced paper cone for excellent detail
  • heavy-duty 6-hole cast frame
  • gold terminals



Specifications

  • Frequency range Hz
  • Nominal impedance 8 Ω
  • Cone Coated paper
  • Surround material Tissue
  • Basket material Aluminium
  • Magnet material Ferrite
  • Voice coil diameter 25,5 mm
  • Voice coil former capton
  • Outside diameter 223 mm
  • Build in hole diameter 186 mm
  • Build in depth 90 mm
  • SPL (1W/1M) 93,2fs 52 Hz
  • VAS 46,6 L
  • QMS 3,76 –
  • QES 0,49 –
  • QTS 0,43 –
  • Re 6,6 Ω
  • Sd 211 cm2
  • Cms 0,75 247 μm/N
  • Mms 12,7 g
  • LE 0,24 VC/mH
  • BL 7,48 (NA) (F/I)
