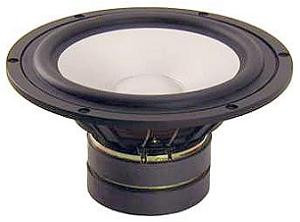

Alcone AC 8 HE

Alcone AC 8 HE
€109.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • alc-ac8he
20 cm bass driver with aluminium cone. A double magnet system increases sensitivity and provides... more
Product information "Alcone AC 8 HE"

20 cm bass driver with aluminium cone. A double magnet system increases sensitivity and provides better control of the voice coil. It reduces the magnetic stray fields, what is good for A/V applications.



Specifications

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 30 l
  • total Q factor Qts = 0,44 (Qms=4,06, Qes=0,49)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 190 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 104 mm
