HiVi S6.5R

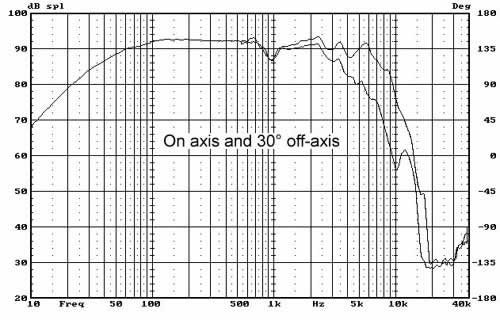

Preview: HiVi Research S6.5R Frequency response

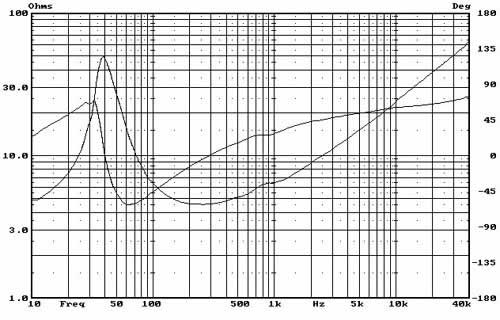

Preview: HiVi Research S6.5R Impedance curve

€79.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: hivi-s6.5r

-Rigid polypropylene talc cone, matching with high suspension compliance surround and high... more

Close menu

Product information "HiVi S6.5R"

-Rigid polypropylene talc cone, matching with high suspension compliance surround and high damping dust cap
-wide frequency response, good transient response., and good sound quality
-High power handling Kapton? Voice coil former and heat-resistant SV voice coil wire
-High performance ferrite double magnet entire coupling shield magnetic system
-Long-throw linear excursion design, broad dynamic range, having low distortion
-Suitable for low-midrange unit of Hi-Fi 2-way vented bookshelf loudspeaker system, and also suitable for 2-way vented floor-standing loudspeaker system

Specifications

Nominal Impedance (Z)(Ω) :		5
Resonance Frequency (Fs)(Hz) :		41
Nominal Power Handling (Pnom)(W) :		60
Max Power Handling (Pmax)(W) :		120
Sensitivity (2.83v/1m)(dB) :		91
Weight (M)(Kg) :		1.9
VC Diameter (mm) :		25
DC (Re)(Ω) :		4.2
VC Length (H)(mm) :		17.5
VC Former :		SV
VC Frame :		Kapton
Magnet System :		Shielded
Magnet Former :		Ferrite
Force Factor (BL)(N/A) :		6.5
Gap Height (He)(mm) :		6.0
Linear Excursion (Xmax)(mm) :		5.8
Suspension Compliance (Cms)(uM/N) :		923
Mechanical Q (Qms) :		5.15
Electrical Q (Qes) :		0.42
Total Q (Qts) :		0.38
Moving Mass (Mms)(g) :		16.1
Effective Piston Area (Sd)(m2) :		0.0139
Equivalent Air Volume (Vas)(L) :		23.2
Cabinet Type :		Vented
Recommended Box Volume(Vb)(L) :		12
Tuning Frequency(Fb)(Hz) :		45
-3dB Cut-Off Frequency(F3)(Hz) :		46
