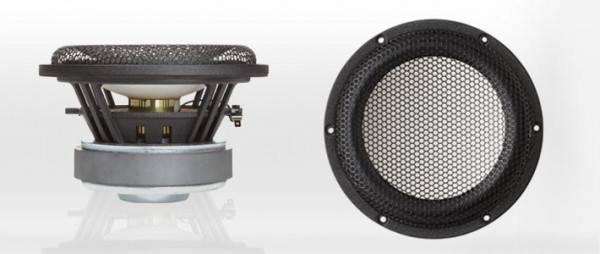

The C173-6-191 is a 6.5" inch bass-midrange for small bookshelf monitors or slim floor standers. The medium sized voice coil with 38mm titanium voice coil former provides high midrange resolution. The long excursion is for high SPL capabilities. Consider this as a successor to C173-6-095, but with higher excursion and smaller box size. This driver might be interchangeable with the C173-6-095 using the same crossover.
Highlights:
7 inch bass-midrange for small bookshelf monitors or slim floorstanders
medium sized voice coil with 38mm titanium voice coil former for high midrange resolution
long excursion design for high SPL capabilities
successor to C173-11-095 - higher excursion, smaller box size
Specifications
power handling (continuous/programme) = 120 W
frequency range = 33-2500 Hz
resonance frequency fs = 33 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 5,6 Ohm
force factor BL = 8,5 N/A
voice coil inductance L = 0,7 mH
effective piston radiating area Sd = 130 cm2
effective mechanical mass incl. air load mms = 17.5 g
equivalent volume of compliance Vas = 33 l
total Q factor Qts = 0,27 (Qms=4,9, Qes=0,29)
voice coil diameter = 38 mm
maximum peak linear excursion vibration xlin = +/- 5 mm
