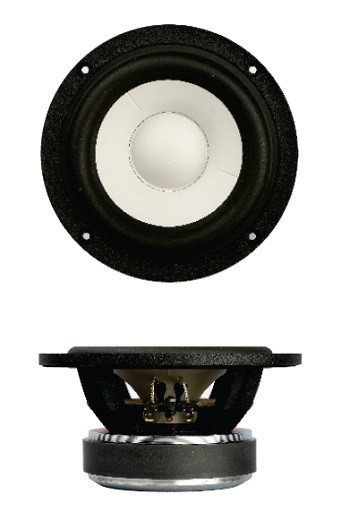

SB Acoustics SB15CAC30-8

€74.63 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382440
SB Acoustics SB15CAC30-8 Vented cast aluminium chassis for optimum strength and low... more
Product information "SB Acoustics SB15CAC30-8"

SB Acoustics SB15CAC30-8

  • Vented cast aluminium chassis for optimum strength and low compression
  • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression

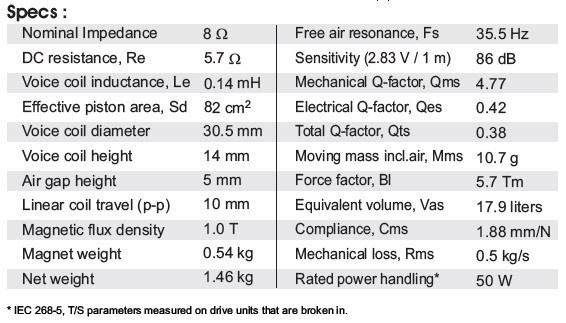

Specifications

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 35.5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5.7 Ohm
  • force factor BL = 5.7 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 10.7 g
  • equivalent volume of compliance Vas = 17.9 l
  • total Q factor Qts = 0.38 (Qms=4.77, Qes=0.42)
  • voice coil diameter = 30,5 mm

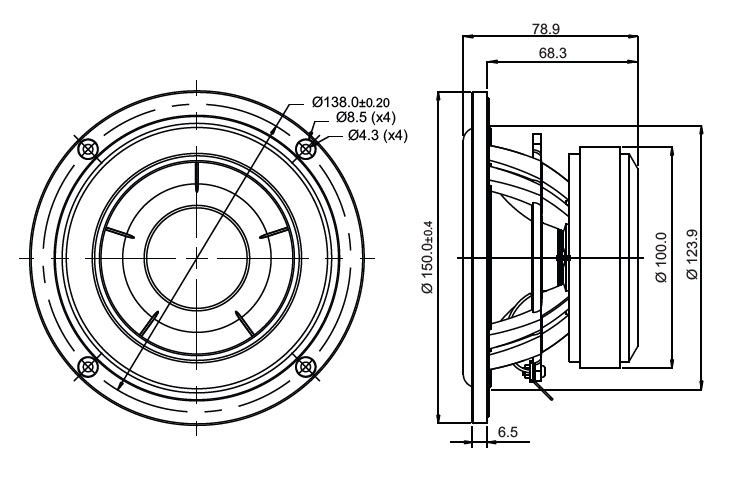

  • mounting diameter d = 123.9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 68.3 mm
