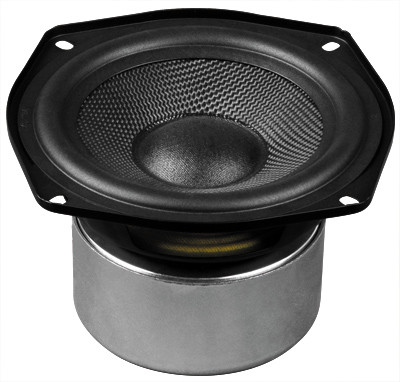

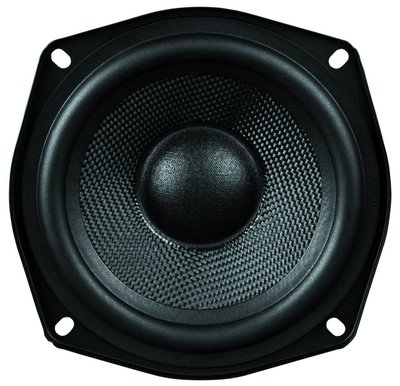

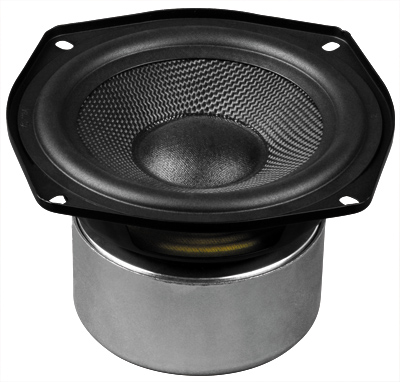

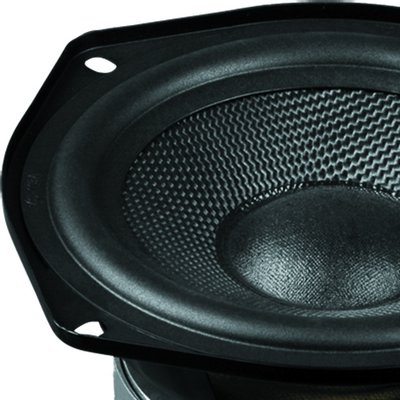

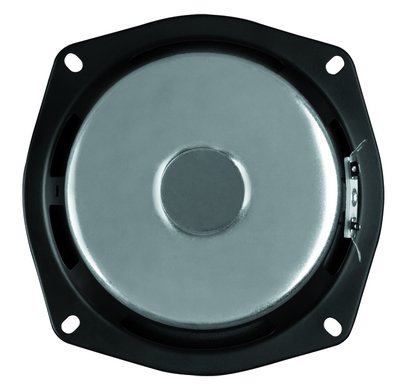

HiVi L5-8R

€80.00 *

Delivery time approx. 5 working days

Specifications General Data Overall Dimensions （ DxH ）： Nominal... more

Product information "HiVi L5-8R"

General Data
Overall Dimensions （ DxH ）：
Nominal Power Handling (Pnom)(W) :		30
Max Power Handling (Pmax)(W) :		60
Sensitivity (2.83v/1m)(dB) :		85
Weight (M)(Kg) :		1.35
Electrical Data
Nominal Impedance (Z)(Ω) :		8
DC (Re)(Ω) :		6.5
Voice Coil and Magnet Parameters
VC Diameter (mm) :		25
VC Length (H)(mm) :		12.3
VC Former :		SV
VC Frame :		Kapton
Magnet System :		Shielded
Magnet Former :		Ferrite
Force Factor (BL)(N/A) :		5
Gap Height (He)(mm) :		5
Linear Excursion (Xmax)(mm) :		3.65
T-S Parameters
Suspension Compliance (Cms)(uM/N) :		800.517
Mechanical Q (Qms) :		7
Electrical Q (Qes) :		0.78
Total Q (Qts) :		0.706
Moving Mass (Mms)(g) :		7.87
Effective Piston Area (Sd)(m2) :		0.008
Equivalent Air Volume (Vas)(L) :		7
Resonance Frequency (Fs)(Hz) :		60
