Product information "Gradient W115-4"

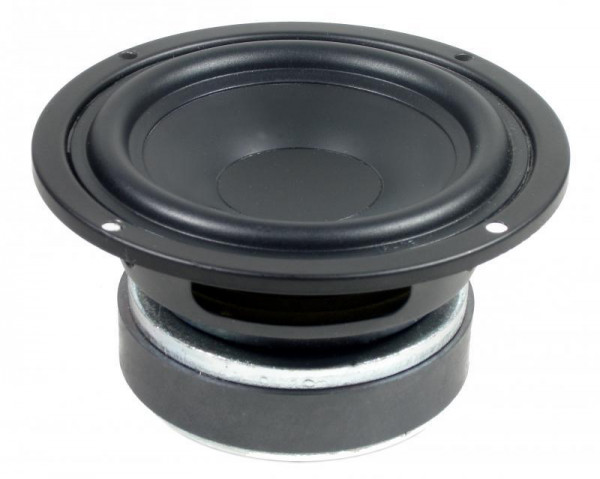

Gradient Select 115mm 4 Ohm loudspeaker

  • 115mm 4 Ω loudspeaker
  • reat audio fidelity and superior price
  • stamped steel frame with profile lip
  • designed for front mounting or countersinking
  • coated paper cone
  • smooth frequency response and linear roll-off
  • simplify filter design



Specifications

  • Frequency range Hz
  • Nominal impedance 4 Ω
  • Cone Coated paper
  • Surround material Tissue
  • Basket material Aluminium
  • Magnet material Ferrite
  • Outside diameter 116 mm
  • Build in hole diameter 92 mm
  • Build in depth 53 mm
  • SPL (1W/1M) 87
  • fs 85 Hz
  • VAS 2,7 L
  • QMS 2,56 –
  • QES 0,62 –
  • QTS 0,4 –
  • Re 3,5 Ω
