Gradient AXT-04

Gradient AXT-04
€41.18 *

Prices incl. VAT plus shipping costs

Delivery time 7-14 Workdays

  • 1381649
Gradient Axis AXT-04 Midbass Loudspeaker   4" high-performance loudspeaker driver... more
Product information "Gradient AXT-04"

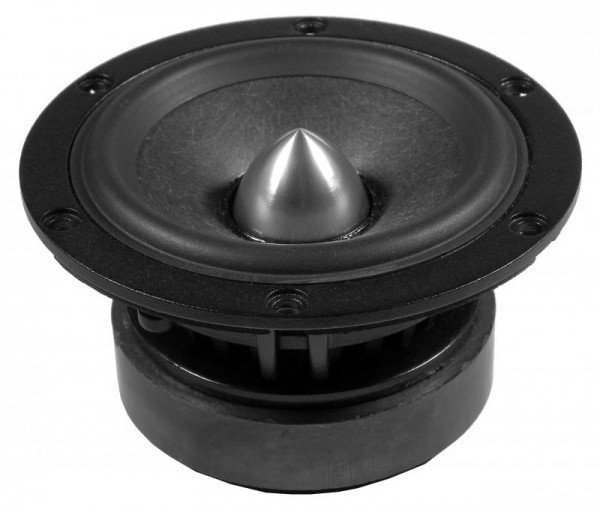

Gradient Axis AXT-04 Midbass Loudspeaker



  • 4" high-performance loudspeaker driver
  • low-distortion motor system
  • high excursion capabilities
  • heavy-duty 6-hole cast frame
  • low-loss



Specifications

  • Frequency range Hz
  • Nominal impedance 4 Ω
  • Cone Kevlar-Paper
  • Surround material Rubber
  • Basket material Aluminium
  • Magnet material Ferrite
  • Voice coil diameter 26 mm
  • Voice coil former capton
  • Outside diameter 99 mm
  • Build in hole diameter 78 mm
  • Build in depth 52 mm
  • SPL (1W/1M) 86,6
  • fs 89 Hz
  • VAS 2,29 L
  • QMS 3,49 –
  • QES 0,56 –
  • QTS 0,48 –
  • Re 3 Ω
  • Sd 38 cm2
  • Cms 1,11 247 μm/N
  • Mms 2,9 g
  • LE 0,08 VC/mH
  • BL – (NA) (F/I)
