SB Acoustics SB34NRX75-16

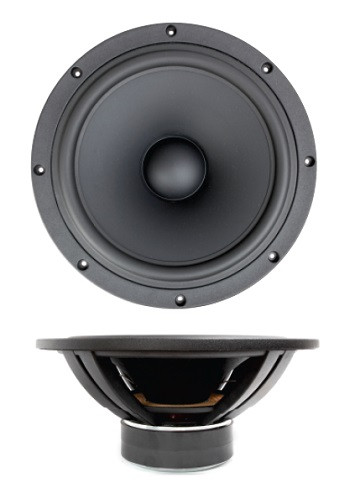

SB Acoustics SB34NRX75-16 12" Woofer

The SB Acoustics SB34NRX75-16 12" woofer uses a large 3" voice coil on a cast aluminium chassis. Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.

Features:

• Designed for open baffle
• High flow venting center pole
• 3" CCAW voice coil
• Low dampening surround
• Non-inductive voice coil former
• Proprietary cone materials made-in-house
• Cast Aluminium chassis

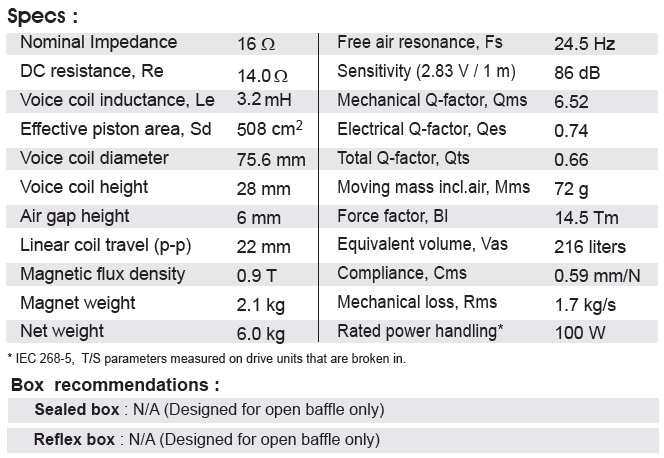

Specifications

• power handling (continuous/programme) = 100 W
• resonance frequency fs = 24,5 Hz
• impedance R = 16 Ohm
• sound pressure level SPL = 86 dB (2,83V; 1m)
• DC resistance Re = 14,0 Ohm
• force factor BL = 14,5 N/A
• voice coil inductance L = 3,2 mH
• effective piston radiating area Sd = 508 cm²
• effective mechanical mass incl. air load mms = 72g
• equivalent volume of compliance Vas = 216 l
• total Q factor Qts = 0,66 (Qms=6.52, Qes=0,74)
• voice coil diameter = 75,6 mm

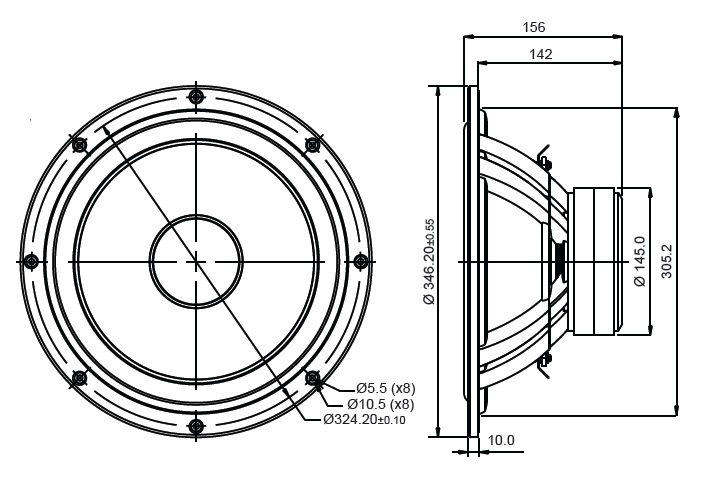

• mounting diameter d = 305,2 mm
• overall diameter d = 346,2 mm
• mounting depth (not countersunk) t = 142 mm
