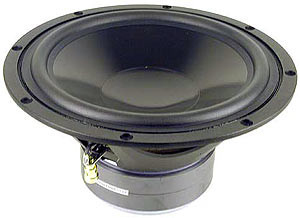

Alcone AC 10 SW-4

Alcone AC 10 SW-4
€179.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • alc-ac10sw4
25 cm bass driver with aluminium cone. To avoid compression effects the driver possesses a pole... more
Product information "Alcone AC 10 SW-4"

25 cm bass driver with aluminium cone. To avoid compression effects the driver possesses a pole piece hole. The basket is made of die-cast. The spider is rear ventilated for better cooling. The voice coil is made of kapton.



Specifications

  • power handling (continuous/programme) = 170/340 W
  • frequency range = 25 - 250 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,33 dB (2,83V; 1m)
  • DC resistance Re = 3,18 Ohm
  • force factor BL = 15,56 N/A
  • voice coil inductance L = 1,89 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 112,21 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,23 (Qms=6,52, Qes=0,24)
  • voice coil diameter = 50 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 274 mm
  • mounting depth (not countersunk) t = 136 mm
