Wavecor WF118WA02

€89.50 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • wf118wa02
Wavecor WA118WA02 4½" paper cone mid/woofer 8 Ohm   Nominal impedance is 4 ohm for... more
Product information "Wavecor WF118WA02"

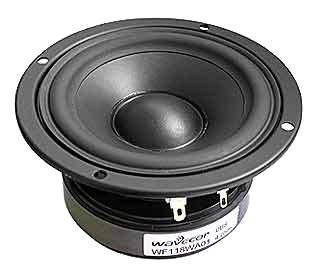

Wavecor WA118WA02 4½" paper cone mid/woofer 8 Ohm


Nominal impedance is 4 ohm for WF118WA01 and 8 ohm for WF118WA02. Otherwise the two models are identical.
WF118WA01/02 are mid/woofers designed for demanding bass and midrange applications. It works equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups.
Powered by a large 85mm magnet structure that ensures good efficiency and optimal T/S parameters.
The large 32mm voice coil ensures high power handling - thermally and mechanically
The optimized paper cone ensures large bandwidth and low distortion. Distortion is further reduced by efficient venting and an alu shorting ring stabilizing the magnetic field in the air gap.
WF118WA01/02 are excellent choices for very compact 2-way speaker systems or even as midrange in multi-way systems.



  • Alu field-stabilizing ring inside magnet assembly for reduced distortion at high levels
  • Vented voice coil former for reduced distortion and compression
  • New vented chassis for lower air flow speed reducing audible distortion
  • Voice coil wound with Copper Clad Aluminium Wire for higher efficiency and better dynamics
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor system with 1¼” voice coil diameter and 85mm magnet for better control and efficiency
  • Black magnet parts for better heat transfer to increase power handling
  • Long linear stroke motor for reduced distortion at high levels
  • New progressive suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation for long-term reliable connection



  • power handling (continuous/programme) = 50 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,28 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 4,3 l
  • total Q factor Qts = 0,44 (Qms=8,6, Qes=0,46)
  • voice coil diameter = 33 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 118 mm
  • mounting depth (not countersunk) t = 61,4 mm
