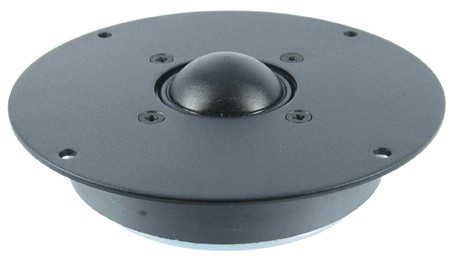

Audax TW034X0

Audax TW034X0
€60.41 * €80.55 * (25% Saved)

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • au-tw034X0
Made by AAC of France Aluminum face plate Replaceable voice coil (RW034X0) High power handling... more
Product information "Audax TW034X0"

Made by AAC of France
Aluminum face plate
Replaceable voice coil (RW034X0)
High power handling
High Efficiency



Specifications

  • power handling (continuous/programme) = 70W
  • frequency range = 600-25000 Hz
  • resonance frequency fs = 800 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,06 mH
  • effective piston radiating area Sd = 10,8 cm2
  • effective mechanical mass incl. air load mms = 0,5 g
  • voice coil diameter = 34 mm
  • maximum peak linear excursion vibration xlin = +/- 0,25 mm
  • mounting diameter d = 106 mm
  • overall diameter d = 132,2 mm
  • mounting depth (not countersunk) t = 29 mm
