Product information "Monacor DT-109"

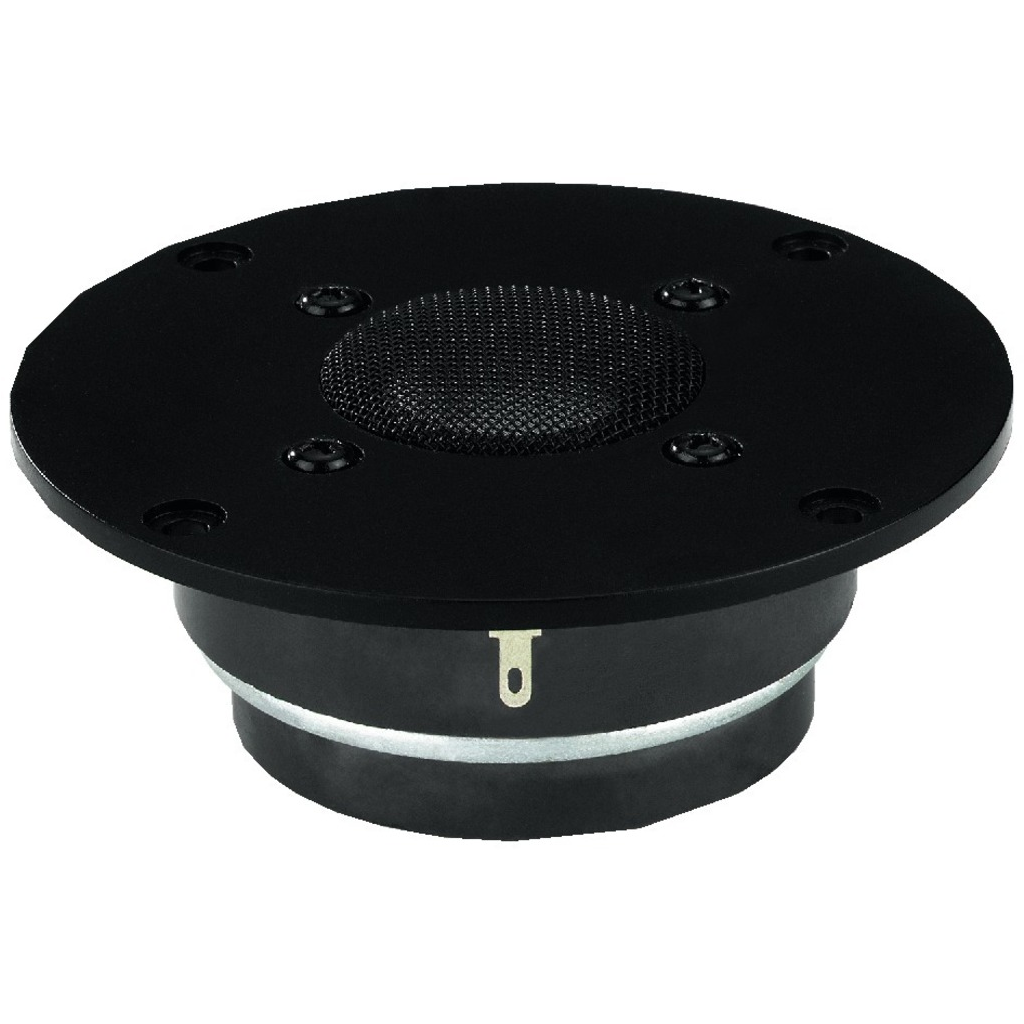

25 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 40/80 W

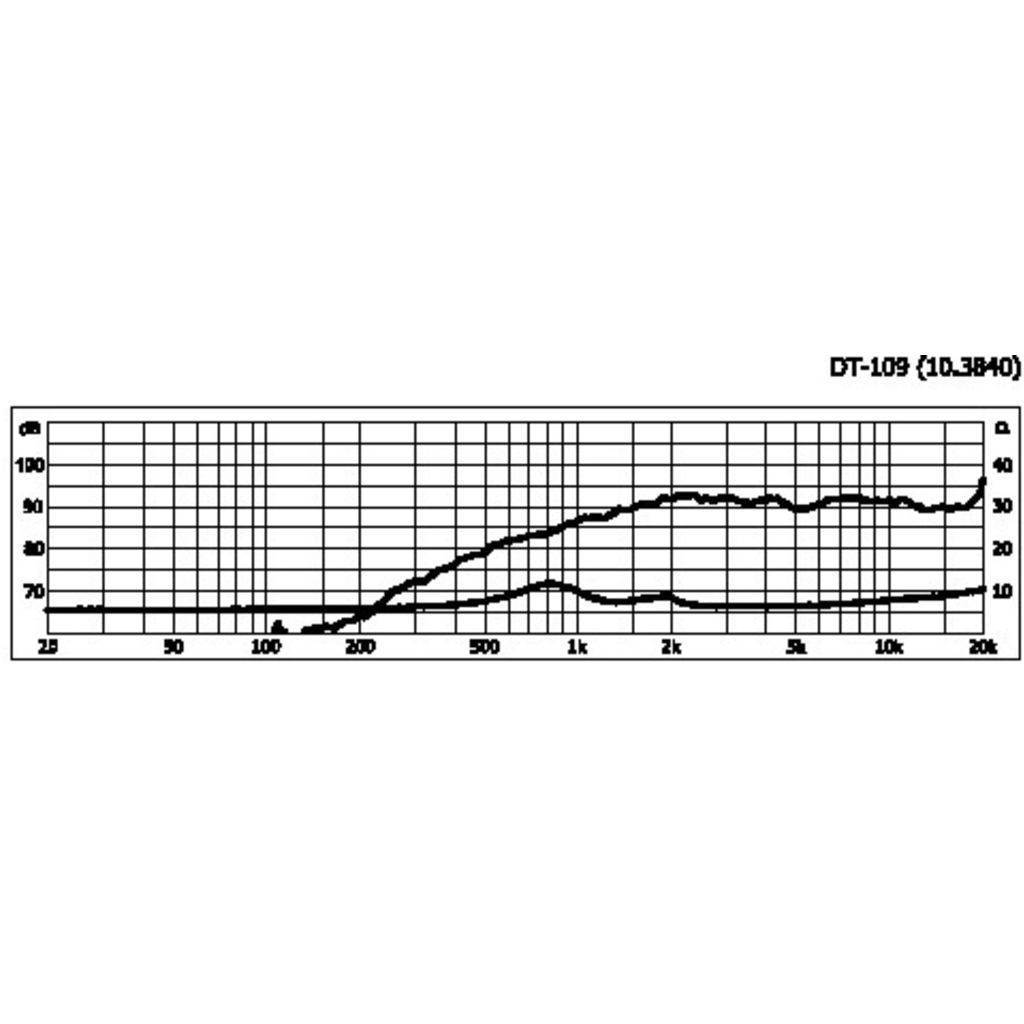

  • frequency range = 2000-22000 Hz
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm

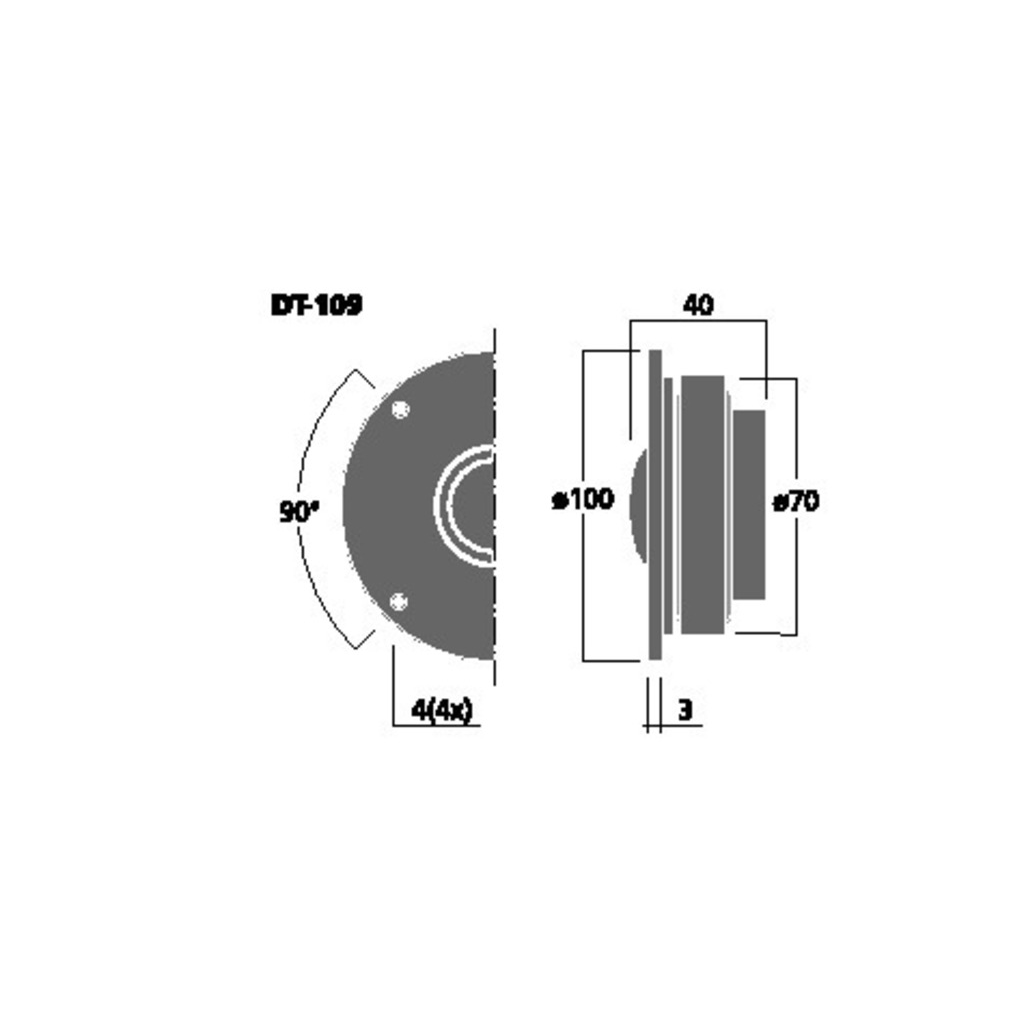

  • mounting diameter d = 72 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 40 mm
  • mass m = 0,61 kg
