Tangband 25-1719

Tangband 25-1719 Ceramic Dome Tweeter

Ceramic dome tweeter with fabric surround, ferrofluid-cooling, and magnetically shielded neodymium magnet. The back chamber design provides a free air resonance of 800 Hz. The 25-1719S produces smooth, extended high frequencies with low 2nd and 3rd harmonic distortion and excellent off-axis response.

Specifications

• power handling (continuous/programme) = 80 W

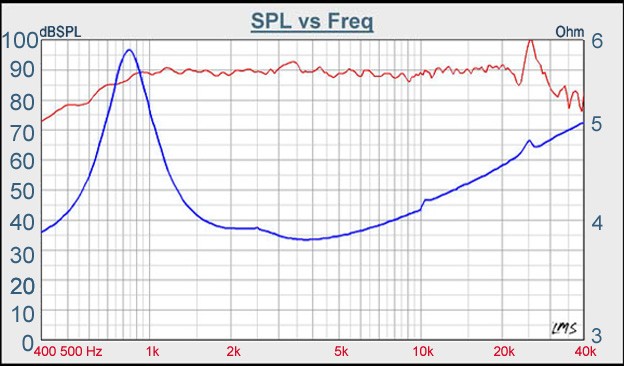

• frequency range = 800-30000 Hz
• resonance frequency fs = 800 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• DC resistance Re = 3 Ohm
• voice coil diameter = 25,4 mm

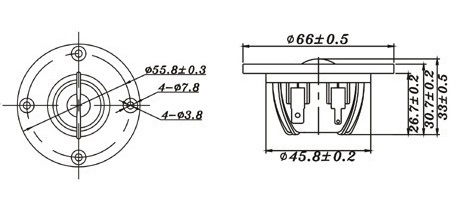

• mounting diameter d = 45,8 mm
• overall diameter d = 66 mm
• mounting depth (not countersunk) t = 26,7 mm
