SB Acoustics SB17CAC35-4

€78.02 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382447
SB Acoustics SB17CAC35-4 6.5" Woofer   Vented cast aluminum chassis for optimum... more
Product information "SB Acoustics SB17CAC35-4"

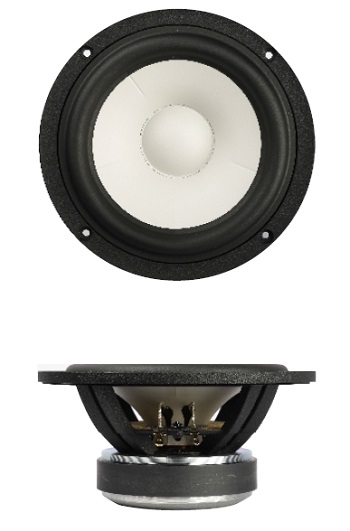

SB Acoustics SB17CAC35-4 6.5" Woofer



  • Vented cast aluminum chassis for optimum strength and low compression
  • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression

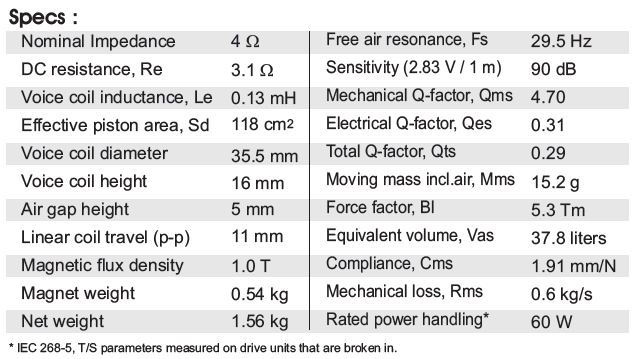

Specifications

  • power handling (continuous/programme) = 60 W
  • resonance frequency fs = 29,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 5,3 N/A
  • voice coil inductance L = 0,13 mH
  • effective piston radiating area Sd = 118 cm2
  • effective mechanical mass incl. air load mms = 15,2 g
  • equivalent volume of compliance Vas = 37,8 l
  • total Q factor Qts = 0,29 (Qms=4.70, Qes=0,31)
  • voice coil diameter = 35,5 mm

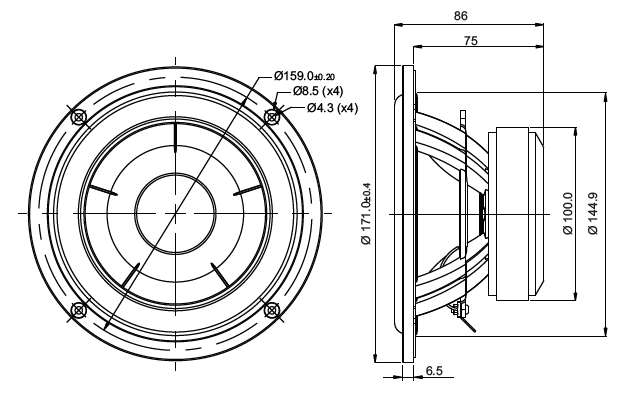

  • mounting diameter d = 145 mm
  • overall diameter d = 171 mm
  • mounting depth (not countersunk) t = 75 mm
