Mission CP-168

Mission CP-168
€39.95 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • bb-cp168
16 cm bass driver with paper cone. The voice coil is ventilated. The voice coil is made of... more
Product information "Mission CP-168"

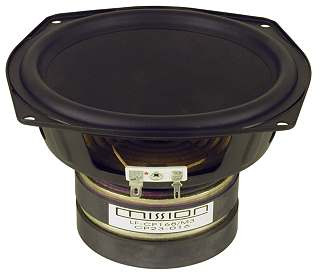

16 cm bass driver with paper cone. The voice coil is ventilated. The voice coil is made of kapton.

  • frequency range = 30-3000 Hz
  • resonance frequency fs = 43,91 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 7,5 Ohm
  • force factor BL = 8,24 N/A
  • effective piston radiating area Sd = 141 cm2
  • effective mechanical mass incl. air load mms = 13,65 g
  • equivalent volume of compliance Vas = 26,7 l
  • total Q factor Qts = 0,4 (Qms=7,17, Qes=0,42)
  • voice coil diameter = 25 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 94 mm
