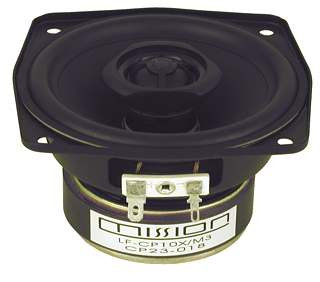

Mission CP-10X

10 cm coax driver with paper cone.  The voice coil is ventilated. The voice coil is made of kapton.

• frequency range = 70-20000 Hz
• resonance frequency fs = 76 Hz
• impedance R = 12 Ohm
• sound pressure level SPL = 86 dB (2,83V; 1m)
• DC resistance Re = 9,7 Ohm
• force factor BL = 5,8 N/A
• effective piston radiating area Sd = 61 cm²
• effective mechanical mass incl. air load mms = 4,9 g
• equivalent volume of compliance Vas = 4,07 l
• total Q factor Qts = 0,56 (Qms=3,45, Qes=0,662)
• voice coil diameter = 25 mm
• mounting diameter d = 98 mm
• overall diameter d = 105 mm
• mounting depth (not countersunk) t = 56 mm
