- Order number: bb-cp138
13 cm midrange driver met papier konus. De spreekspoel is geventileerd. De spreekspoeldrager is... more

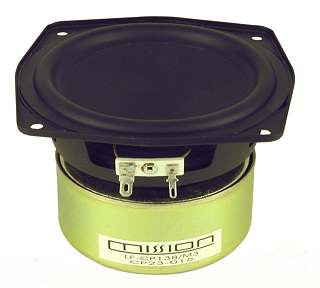

Product information "Mission CP-138"
13 cm midrange driver met papier konus. De spreekspoel is geventileerd. De spreekspoeldrager is van kapton. The unit is magnetisch afgeschermd.
- frequency range = 40-10000 Hz
- resonance frequency fs = 59 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 89,3 dB (2,83V; 1m)
- DC resistance Re = 6,8 Ohm
- force factor BL = 7,13 N/A
- effective piston radiating area Sd = 82 cm2
- effective mechanical mass incl. air load mms = 8,07 g
- equivalent volume of compliance Vas = 8,37 l
- total Q factor Qts = 0,38 (Qms=6,41, Qes=0,4)
- voice coil diameter = 25 mm
- mounting diameter d = 111 mm
- overall diameter d = 126 mm
