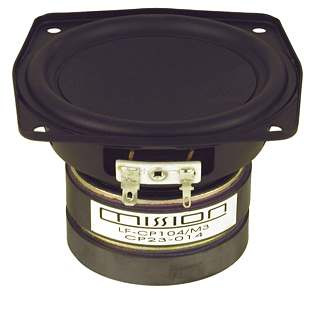

Mission CP-104

Mission CP-104
€19.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • bb-cp104
10 cm midrange unit met papier konus. De spreekspoel van de CP-104 is geventileerd. De... more
Product information "Mission CP-104"

10 cm midrange unit met papier konus. De spreekspoel van de CP-104 is geventileerd. De spreekspoeldrager is van kapton.



Specificaties

  • frequency range = 80-10000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 4,7 N/A
  • effective piston radiating area Sd = 61 cm2
  • effective mechanical mass incl. air load mms = 7,33 g
  • equivalent volume of compliance Vas = 5,51 l
  • total Q factor Qts = 0,34 (Qms=2,8, Qes=0,39)
  • voice coil diameter = 25 mm
  • mounting diameter d = 97 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk)
