Gradient AX-08

Gradient
Preview: Gradient AX-08 Preview: Gradient AX-08 curve Preview: Gradient AX-08 impedance Preview: Gradient AX-08 waterfall

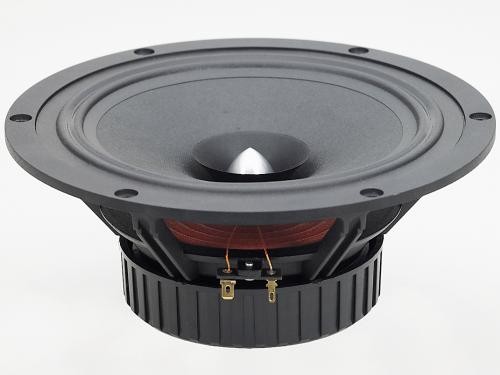

Gradient AX-08

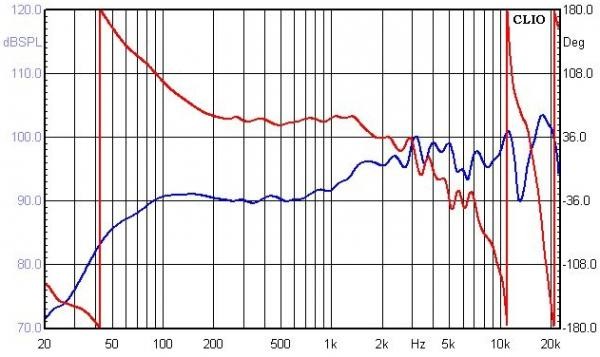

Gradient AX-08 curve

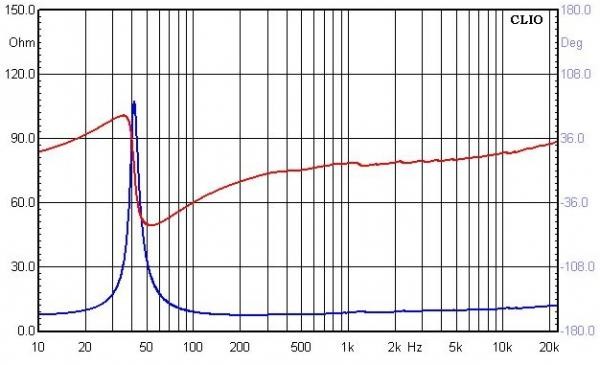

Gradient AX-08 impedance

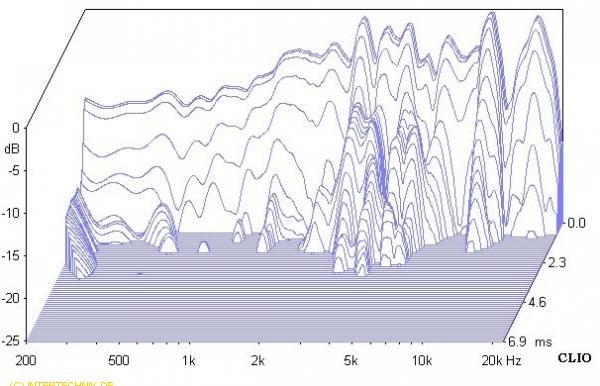

Gradient AX-08 waterfall

€67.50 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1381680
Description Evaluations 0
Description
8" Fullrange Loudspeaker Cone Kevlar-Paper Surround material Tissue Basket material... more
Close menu
Product information "Gradient AX-08"

8" Fullrange Loudspeaker

  • Cone Kevlar-Paper
  • Surround material Tissue
  • Basket material Aluminium
  • Magnet material Ferrite



Specifications

  • SPL (1W/1M) 92
  • fs 37,6 Hz
  • VAS 92,7 L
  • QMS 5,69
  • QES 0,54
  • QTS 0,49
  • Re 6,3 Ω
  • Sd 211 cm2
  • Cms 1,52 μm/N
  • Mms 11,6 g
  • LE 0,17  VC/mH
  • BL 5,67 (NA) (F/I)
  • Voice coil diameter 25 mm
  • Voice coil former capton
  • Outside diameter 223 mm
  • Build in hole diameter 186 mm
  • Build in depth 90 mm
