- Order number: fo-10714
HP (Hyperbolic Paraboloid) shell diaphragm ‘ES cone’ paper made of banaba plant’s fiber... more

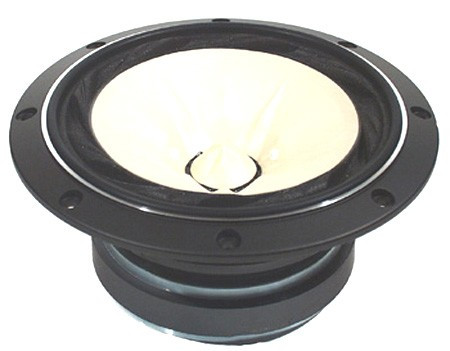

Product information "Fostex FE208E Sigma"
- HP (Hyperbolic Paraboloid) shell diaphragm
- ‘ES cone’ paper made of banaba plant’s fiber
- UDR tangiential edge / damper
- ø 156mm large ferrite magnet
Technical Data:
- power handling (continuous/programme) = 34/100 W
- frequency range = 42-14000 Hz
- resonance frequency fs = 42 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 97 dB (2,83V; 1m)
- DC resistance Re = 6,4 Ohm
- force factor BL = 10,8 N/A
- voice coil inductance L = 0,0517 mH
- effective piston radiating area Sd = 201 cm2
- effective mechanical mass incl. air load mms = 13,3 g
- equivalent volume of compliance Vas = 60,1 l
- total Q factor Qts = 0,18 (Qms=6,191, Qes=0,19)
- voice coil diameter = 35 mm
- maximum peak linear excursion vibration xlin = +/- 1,25 mm
- mounting diameter d = 182 mm
- overall diameter d = 230 mm
- mounting depth (not countersunk) t = 93,5 mm
