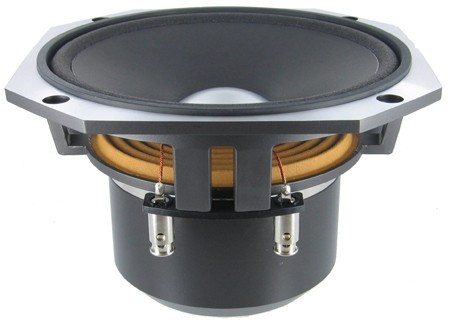

Fostex F200A

• 200mm (8 in) cone type full range
• 8 ohm impedance
• fo to 20kHz frequency response
• 90dB sensitivity at 1W/1m (3.3ft)
• 4.4kg (9.700 lb) net weight

Technical Data:

• power handling (continuous/programme) = 27/80 W
• frequency range = 40-20000 Hz
• resonance frequency fs = 30 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• DC resistance Re = 7,3 Ohm
• effective piston radiating area Sd = 201 cm²
• effective mechanical mass incl. air load mms = 18,6 g
• equivalent volume of compliance Vas = 98,96 l
• total Q factor Qts = 0,32 (Qms=2,63, Qes=0,36)
• maximum peak linear excursion vibration x_lin = +/- 2 mm
• mounting diameter d = 182 mm
• overall diameter d = 194 mm
• mounting depth (not countersunk) t = 124 mm
