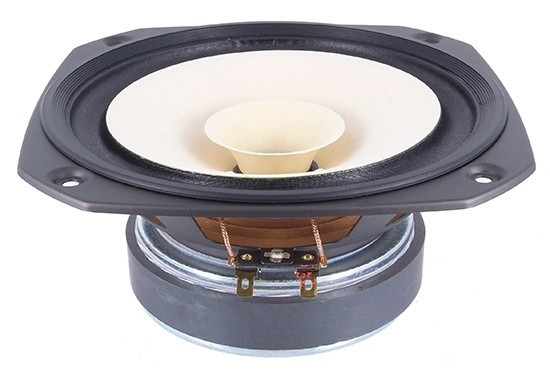

ES cone and center cap are adapted. This new diaphragm material has the fine, supple and high density fiber, and its characteristics successfully improve the mid-high frequency reproduction.
ø110mm strong ferrite magnet is employed.
Well tuned Qts / Mms values for ease of use in the back loaded horn enclosure.
Technical Data:
power handling (continuous/programme) = 22/65 W
frequency range = -22000 Hz
resonance frequency fs = 53 Hz
impedance R = 8 Ohm
sound pressure level SPL = 94 dB (2,83V; 1m)
DC resistance Re = 7,2 Ohm
force factor BL = 7,65 N/A
voice coil inductance L = 0,052 mH
effective piston radiating area Sd = 133 cm2
effective mechanical mass incl. air load mms = 6,8 g
equivalent volume of compliance Vas = 37,02 l
total Q factor Qts = 0,27 (Qms=3426, Qes=0,266)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 1,0 mm
