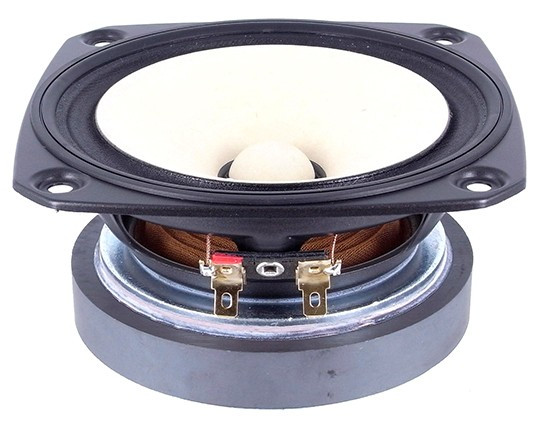

Fostex FE126En

Fostex FE126En
€69.50 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • fo-22925
* ES Banana Pulp Cone with whizzer cone.  Banana fiber pulp provides a fine, supple and... more
Product information "Fostex FE126En"

* ES Banana Pulp Cone with whizzer cone.  Banana fiber pulp provides a fine, supple and dense cone material which improves mid-high frequency response.

* Treated cloth surround. (new version, thus the new "n" in the name)

* The low Qts makes this driver useful in back loaked horn enclosure.



Technical Data:

  • power handling (continuous/programme) = 15/45 W
  • frequency range = -25000 Hz
  • resonance frequency fs = 83 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 5,63 N/A
  • voice coil inductance L = 0,035 mH
  • effective piston radiating area Sd = 65 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • equivalent volume of compliance Vas = 8,5 l
  • total Q factor Qts = 0,31 (Qms=4,8, Qes=0,33)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 0,35 mm
  • mounting diameter d = 104 mm
  • overall diameter d = 117 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 0,99 kg
