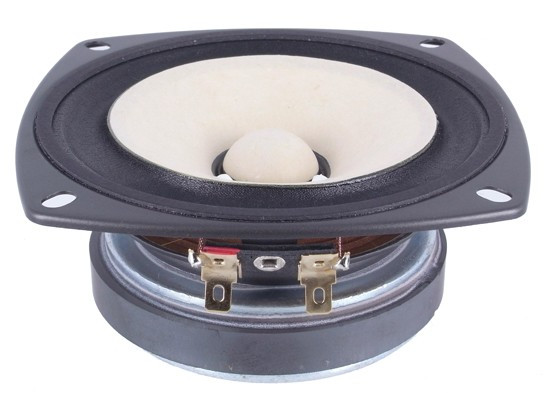

Fostex FE103En

Fostex FE103En
€62.50 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • fo-22924
ES banana pulp paper cone for strength coated cloth surround 80mm diameter strong ferite... more
Product information "Fostex FE103En"
  • ES banana pulp paper cone for strength
  • coated cloth surround
  • 80mm diameter strong ferite magnet
  • Qts and Mms values are well tuned for bass reflex or folded horn enclosures



Technical Data:

  • power handling (continuous/programme) = 5/15 W
  • frequency range = -22000 Hz
  • resonance frequency fs = 83 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 7,5 Ohm
  • force factor BL = 4,99 N/A
  • voice coil inductance L = 0,0398 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 2,55 g
  • equivalent volume of compliance Vas = 5,95 l
  • total Q factor Qts = 0,38 (Qms=2747, Qes=0,377)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 0,6 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 107 mm
  • mounting depth (not countersunk) t = 45,5 mm
  • mass m = 0,58 kg
