Fountek FR88

€20.57 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1420064
Die cast chassis  Aluminum cone ... more
Product information "Fountek FR88"
  • Die cast chassis
  • Aluminum cone
  • extended frequency response
  • 25 mm voice coil
  • Low distortion



Specifications

  • power handling (continuous/programme) = 15 W
  • frequency range = 105-25000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 3,152 N/A
  • effective piston radiating area Sd = 27,34 cm2
  • effective mechanical mass incl. air load mms = 2 g
  • equivalent volume of compliance Vas = 1,2 l
  • total Q factor Qts = 0,6 (Qms=2,568, Qes=0,777)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm

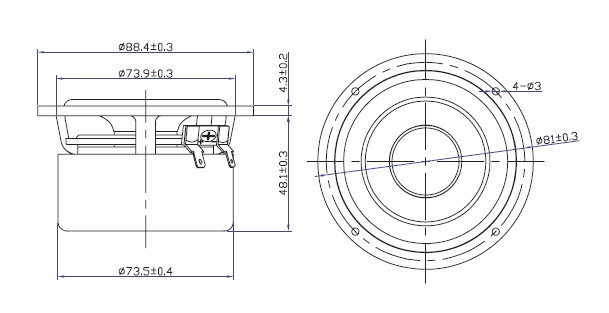

  • mounting diameter d = 73,9 mm
  • overall diameter d = 88,4 mm
  • mounting depth (not countersunk) t = 48,1 mm
  • mass m = 0,58 kg
