Alcone Sub 40 Definition

Alcone Sub 40 Definition
€921.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • SW10121
Alcone Sub 40 Definition is a compact high-end subwoofer. Dennis Frank und Daniel Gattig have... more
Product information "Alcone Sub 40 Definition"

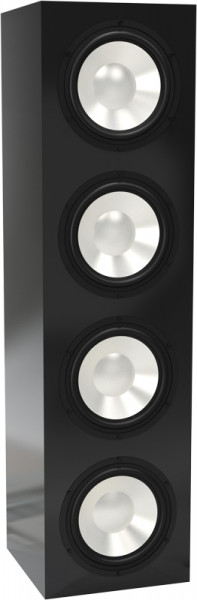

Alcone Sub 40 Definition is a compact high-end subwoofer. Dennis Frank und Daniel Gattig have developed this woofer. Alcone Sub 40 Definition is home to four Alcone AC10 HE woofers and an amplification module.

In a listening test Peter Strassacker found that the 24 cm Alcone AC 10 HE seems to be a perfect woofer. Only few combinations like this could be identified up to now.

Alcone Sub 40 Definition in a housing of dimensions of 136 x 34 x 34 cm is the highest subwoofer of the Definition series.

The Crossover

The subwoofer is equipped with a subwoofer module like Sitronik VP500A or other modules. Every module contains an adjustable analog filter (active low pass).
The modules are made for the installation into the casing. The amplifier module is located at the rear of the cabinet.
More and more customers are asking for a subwoofer where the cone's oscillation is controlled perfectly, reproducing a low bass and mountable in a small cabinet. We recommend the Definition series.

Our kit consists of

  • 4x Alcone 25 cm speaker AC10 HE, aluminium cone
  • module Monacor SAM-500D, 500W
  • 4x Damping Sonofil 100 x 35 cm for 20 litres
  • 3m Speaker cable 2x2.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, cross recess, 8 pieces
  • 3x Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

Kit without cabinet,  price per speaker
