Audimax BE

Audimax BE
€875.00 *

Prices incl. VAT plus shipping costs

Delivery time 5 Workdays

  • SW10640

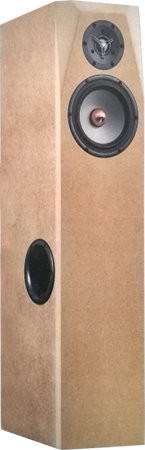

Audimax Floorstand BE is a two way floorstanding speaker. Audimax Floorstand BE is a... more
Product information "Audimax BE"

Audimax Floorstand BE is a two way floorstanding speaker.

Audimax Floorstand BE is a bass-reflex cabinet loudspeaker with drivers of SB Acoustics and Hobby-HiFi (Made by SEAS).

The kit is delivered with the following drivers:
- a SB Acoustics Satori TW29B-B tweeter
- a Hobby-HiFi (Made by SEAS) 18MW12T woofer

The loudspeaker has been developed by Bernd Timmermanns presentes in Hobby-Hifi 1-2019.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,3% above 200 Hz.



Technical data
  • impedance: 12 Ohm
  • sensivity (2,83V/1m): 80 dB
  • size (HxWxD): 975 x 210 x 300 mm
  • frequency range (-8dB): 30 - 40000 Hz
  • crossover frequency(s): 1700 Hz
  • speaker type: bass reflex



The kit contains:

  • SB Acoustics tweeter SATORI-TW29B-B, black
  • Hobby-HiFi woofer 18MW12T, produced by SEAS
  • 0,5x Jetset 70MR, bass reflex tube system, middle
  • Jetset 70AT, bass reflex tube system, outer part
  • Jetset 70IT, bass reflex tube system, inner part
  • JetSet 90grad 3 inch male to female elbow 70
  • 0,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • 0,5x Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 3m Speaker cable 2x2.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, 8 pieces
  • Mundorf MCAP EVO Oil 0.22 uF / 450 V
  • Mundorf MCAP EVO Oil 2.2 uF / 450 V
  • Mundorf MCAP EVO Oil 3.3 uF / 450 V
  • Mundorf MCAP EVO Oil 4.7 uF / 450 V
  • Mundorf MCAP EVO Oil 10 uF / 450 V
  • Mundorf baked varnish air core coil BL71, 0.47 mH/0.57 Ohm
  • Mundorf baked varnish air core coil BL71, 0.68 mH/0.71 Ohm
  • Mundorf baked varnish air core coil BL140, 4.7 mH/0.83 Ohm
  • Metal-oxide resistor, 10W 10 Ohm (brown-black-black)
  • 2x Metal-oxide resistor, 5W 1.0 Ohm (brown-black-gold)
  • Plan for DIY kit



(No wood panels included!)
