Audimax Core

Audimax Core
€1,325.00 *

Prices incl. VAT plus shipping costs

Delivery time 5 Workdays

  • SW10639
Audimax Core   (Audimax Core is a two way floorstanding speaker. As in Hobby HiFi... more
Product information "Audimax Core"

Audimax Core



(Audimax Core is a two way floorstanding speaker. As in Hobby HiFi 4-2018)



Technical data
  • impedance: 6 Ohm
  • sensivity (2,83V/1m): 86 dB
  • size (HxWxD): 1200 x 250 x 350 mm
  • frequency range (-8dB): 26 - 40000 Hz
  • crossover frequency(s): 1650 Hz
  • speaker type: bass reflex

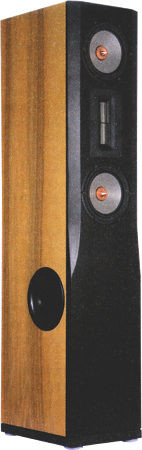

Audimax Core is a two way floorstanding speaker.

Audimax Core is a bass-reflex cabinet loudspeaker with drivers of SEAS and Audaphon.

The kit is delivered with the following drivers:
- a Audaphon Neo pro 5i ribbon-tweeter
- two SEAS Excel 18MW12T woofers

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.



At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 0,4% above 100 Hz.



The kit contains

  • Audaphon ribbon NeoPro5i, aluminium, black, 1/2 package
  • 2x Hobby-HiFi woofer 18MW12T, produced by SEAS
  • Jetset 100AT, bass reflex tube system, outer part
  • Jetset 100IT, bass reflex tube system, inner part
  • 0,5x Jetset 100MR, bass reflex tube system, middle
  • JetSet 100, 90grad 4 inch male to female elbow
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Audaphon Damping 10, 970 x 470 mm, adhesive
  • Binding Post PK31, gold plated (one pair, red and black)
  • 5m Speaker cable 2x2.5 mm2, transparent
  • 2,5x Pan screws 4x20 black, 8 pieces
  • Mundorf MCAP EVO Oil 0.47 uF / 450 V
  • Mundorf MCAP EVO Oil 1.5 uF / 450 V
  • 2x Mundorf MCAP EVO Oil 4.7 uF / 450 V
  • 2x Mundorf MCAP EVO Oil 10 uF / 450 V
  • Mundorf baked varnish air core coil BL71, 0.18 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.68 mH/0.71 Ohm
  • Mundorf baked varnish air core coil BL140, 2.2 mH/0.46 Ohm
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)
  • 2x Metal-oxide resistor, 5W 0.47 Ohm 5% (yellow-purple-silver)
  • Metal-oxide resistor, 5W 3.3 Ohm (orange-orange-gold)
  • Plan for DIY kit



(No woodpanels included)
