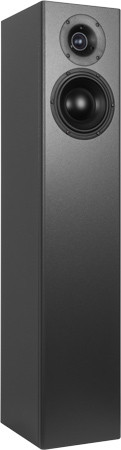

Elde is a bass-reflex cabinet loudspeaker with drivers of Morel and Wavecor.
The kit is delivered with the following drivers: - a Wavecor TW030WA12 tweeter - a Morel CAW 638 midrange / bass driver
The loudspeaker has been developed by Dennis Frank and Daniel Gattig.
The crossover consists of: - a first order high-pass filter (6 dB per octave slope) for the tweeter. - a first order low-pass filter (6 dB per octave slope) for the woofer.
Between 100 Hz and 20000 Hz, the frequency response of this loudspeaker is nearly flat on axis.
The decay spectrum is nearly perfect.
At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0.3% above 400 Hz and doesn't exceed 0.5% at 95 dB at 1 m between 300 and 15000 Hz.
Technical data
impedance: 8 Ohm
sensivity (2,83V/1m): 83 dB
size (HxWxD): 980 x 200 x 250 mm
frequency range (-8dB): 28 - 25000 Hz
crossover frequency(s): 1500 Hz
speaker type: bass reflex
The kit contains
Wavecor silk dome tweeter TW030WA12, 8 Ohm
Morel CAW 638
Bass reflex tube HP70, 68x160 mm, black
Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
1,5x Damping Sonofil 100 x 35 cm for 20 litres
Binding Post PK28 I, gold plated (one pair, red and black)
