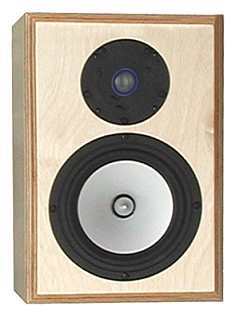

Alcone Mini 65

Alcone Mini 65
€185.13 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • kit-alcone-mini65
When asked for loudspeakers with clean mids and bass without any boominess, Dennis Frank... more
Product information "Alcone Mini 65"

When asked for loudspeakers with clean mids and bass without any boominess, Dennis Frank developed the Mini 65 as an inexpensive addition to the Alcone range.

The combination of Alcone 6.5 and Seas TWS 27-6 dome tweeter resulted in a budget loudspeaker kit with outstanding sound and a very linear frequency response.

If a lower bass is preferred we recommend the Alcone Midi floorstanding speaker.




The Mini 65 shows the following characteristics:
transparent sound
clean bass
compact design
exceptionally good price / performance ratio

Technical data:

  • frequency response: 55-25 000 Hz (-8dB)
  • power handling (continuous/programme): 80 / 120 Watt
  • cut-off frequency: 2700 Hz
  • SPL: 88 dB (1W/1m)
  • impedance: 8 Ohm
  • dimensions (HxWxD): 34,8 x 23 x 25 cm



The Mini 65 kit consists of:

  • 1 x Seas TWS 27-6 tweeter
  • 1 x Alcone AC 6.5 HE mid / bass
  • 1 x terminal with gold-plated brass binding posts
  • 1 x bag damping material
  • 13 x screws 4 x 20 mm
  • 2,5 metre cable 2x1,5 mm2 for internal wiring
  • description and building instruction
  • 1 x crossover, to be mounted on wood
  • 1,8 mH core coil
  • 0,18 mH air core coil, 0,7 mm
  • 0,39 mH air core coil, 0,7 mm
  • 3,9 uF MKP capacitor
  • 8,2 uF MKP capacitor
  • 2,2 uF MKT capacitor
  • 3,3 uF MKT capacitor
  • ceramic resistor 1,5 Ohm, 10 Watt
  • resistor 6,8 Ohm, MOX5 (blue-grey-gold)
  • resistor 47 Ohm, MOX5 (yellow-purple-gold)
